Stacker

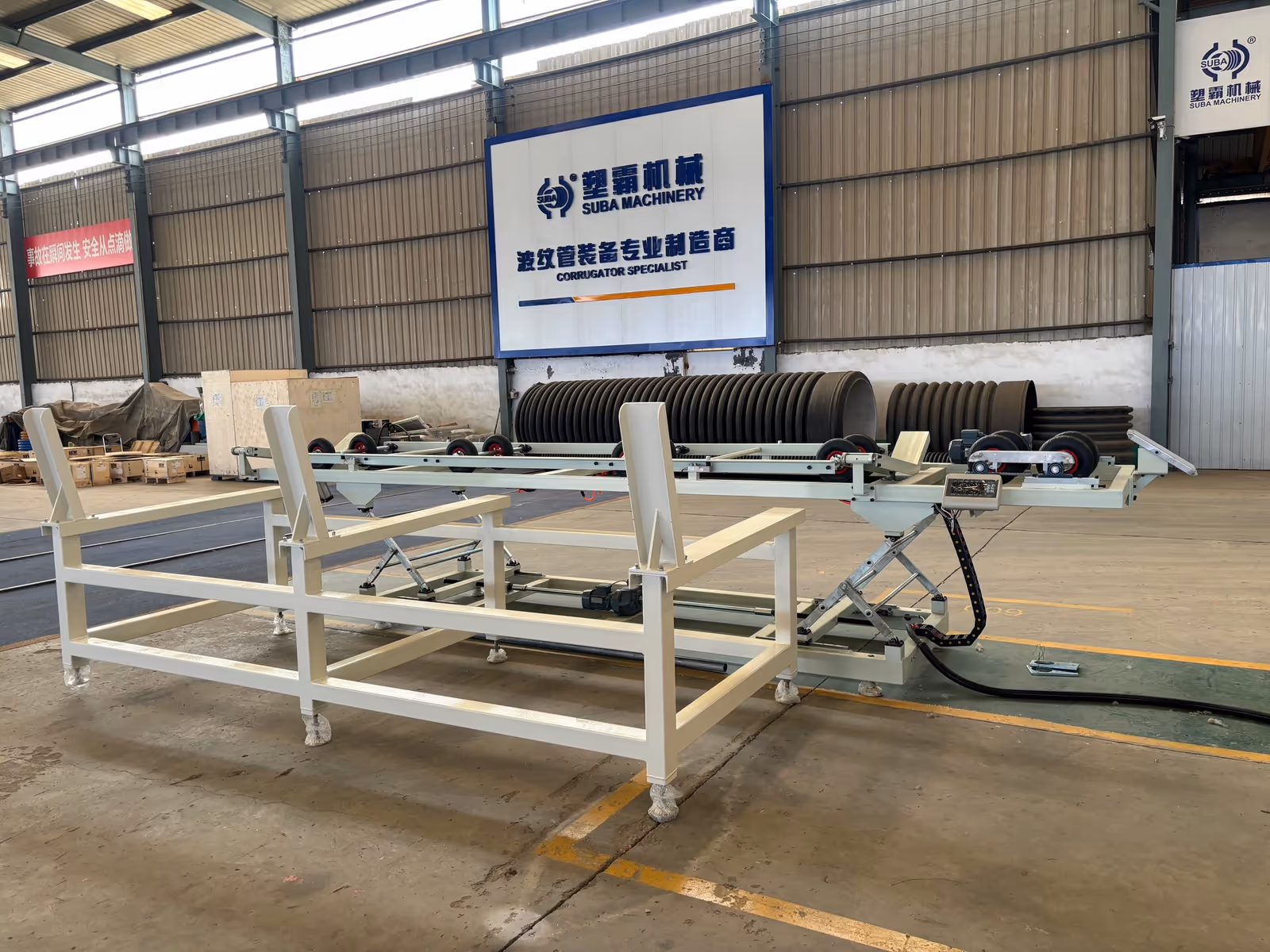

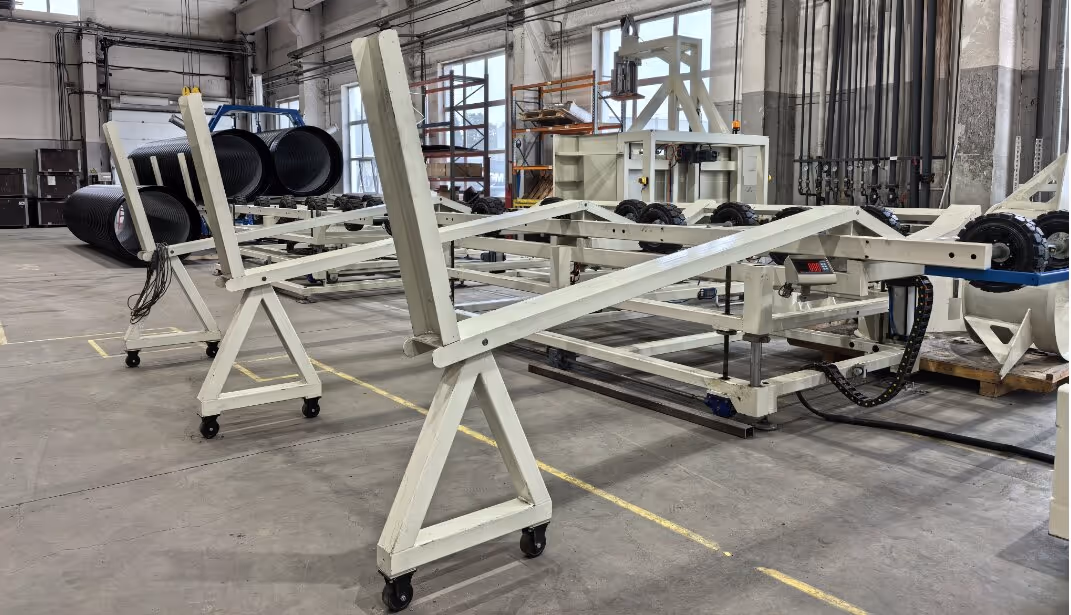

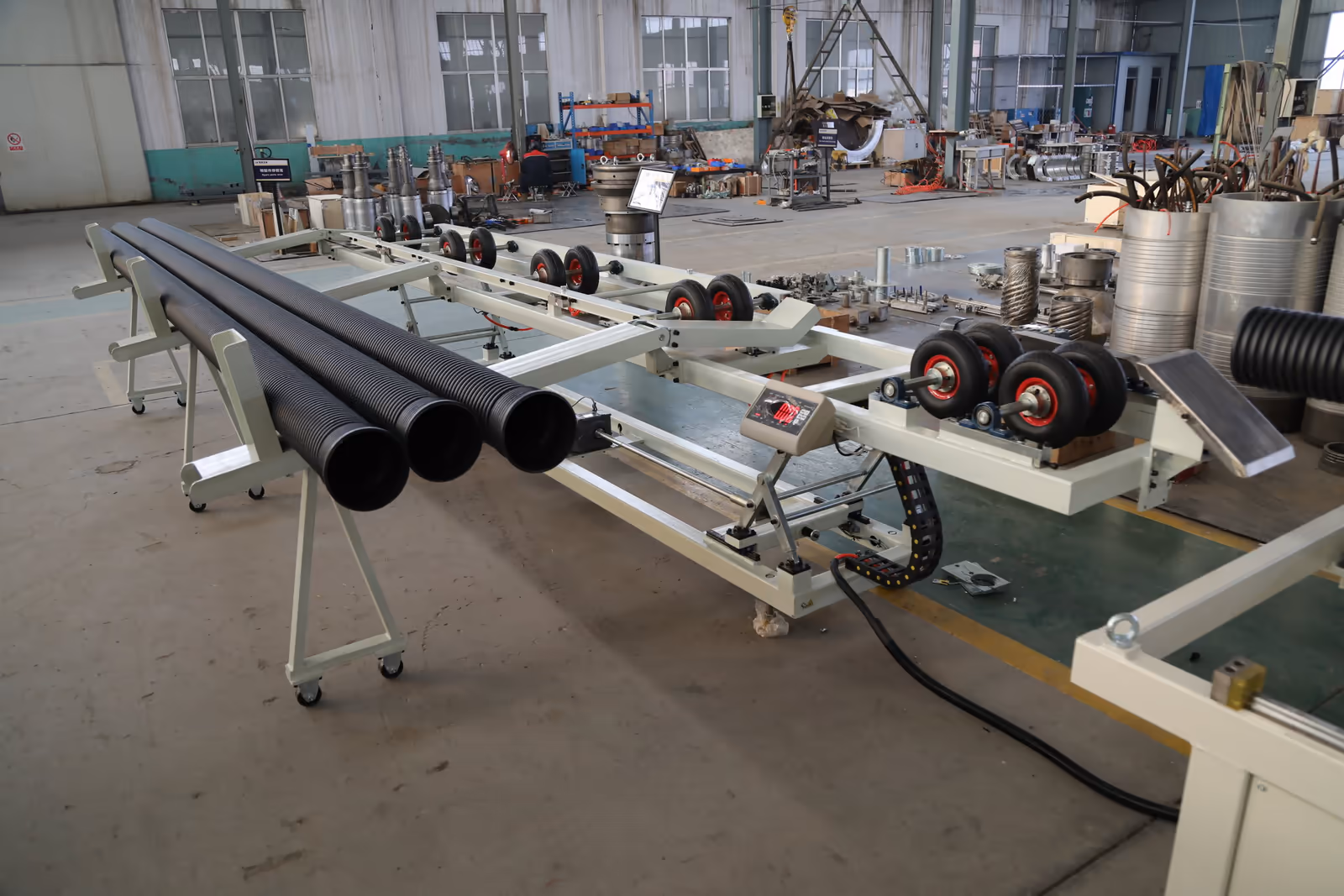

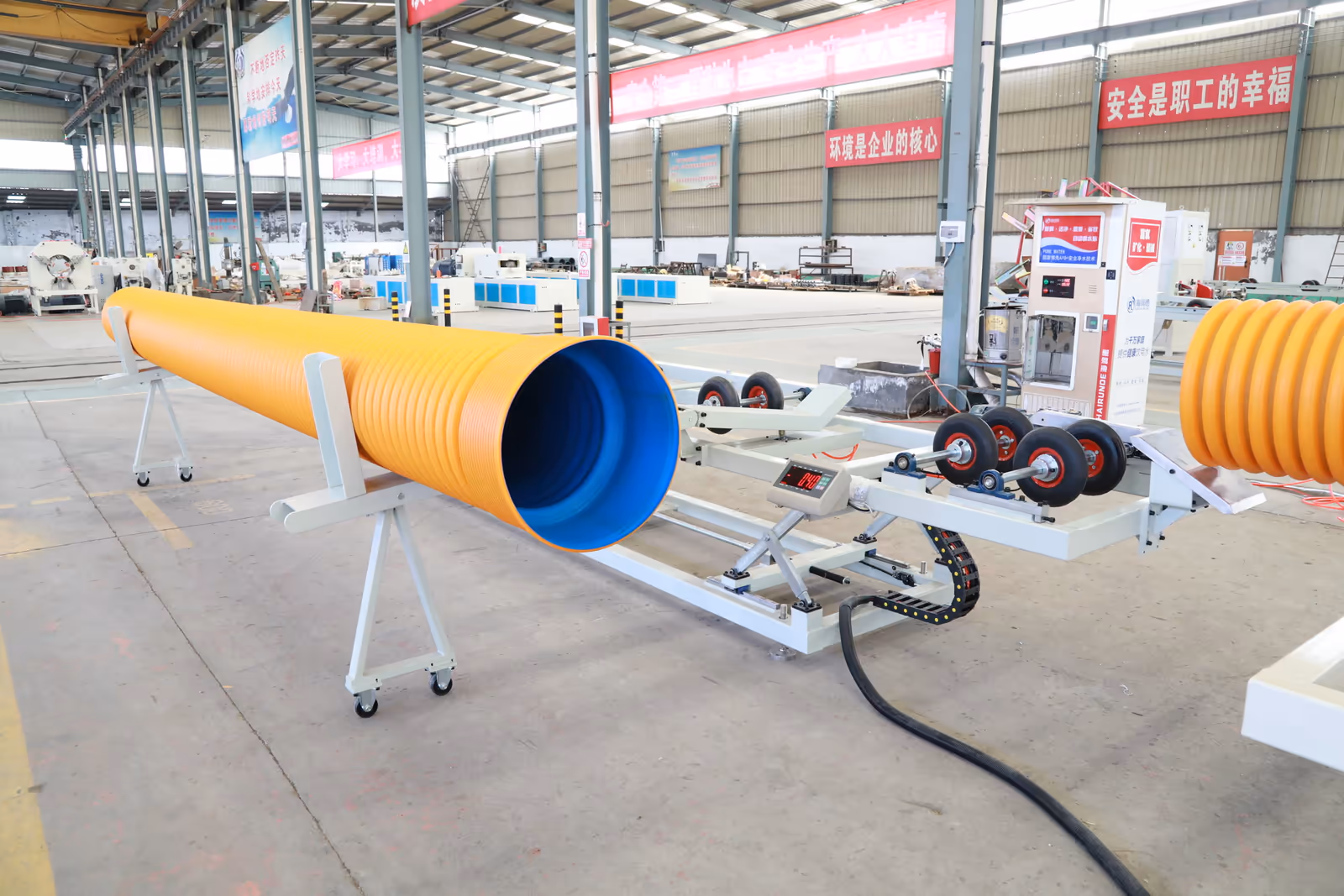

Double layer corrugated pipe extrusion line stacker is automatically discharged and equipped with a weighing system.

Automatic unloading.
Automatic height adjustment.
Weighing system monitors pipe production status in real time.
With pipe weight display.
With weight deviation alarm function.
Finished pipes can be temporarily stored in the stacker or directly moved into the truck.

Our specialists will contact you within 24 hours

Technical Specifications by Line

Stacker variants used across different production lines and pipe diameters

Configuration	Line	Pipe Diameter
SL180 stacker	SL180	ID32–OD200
SL300 stacker	SL300	ID100–OD315
SL600 stacker	SL600	ID100–OD630
SL800 stacker	SL800	ID200–OD1000
SL1000 stacker	SL1000	ID400–OD1200
SL1200 stacker	SL1200	ID600–OD1400
SL1600 stacker	SL1600
