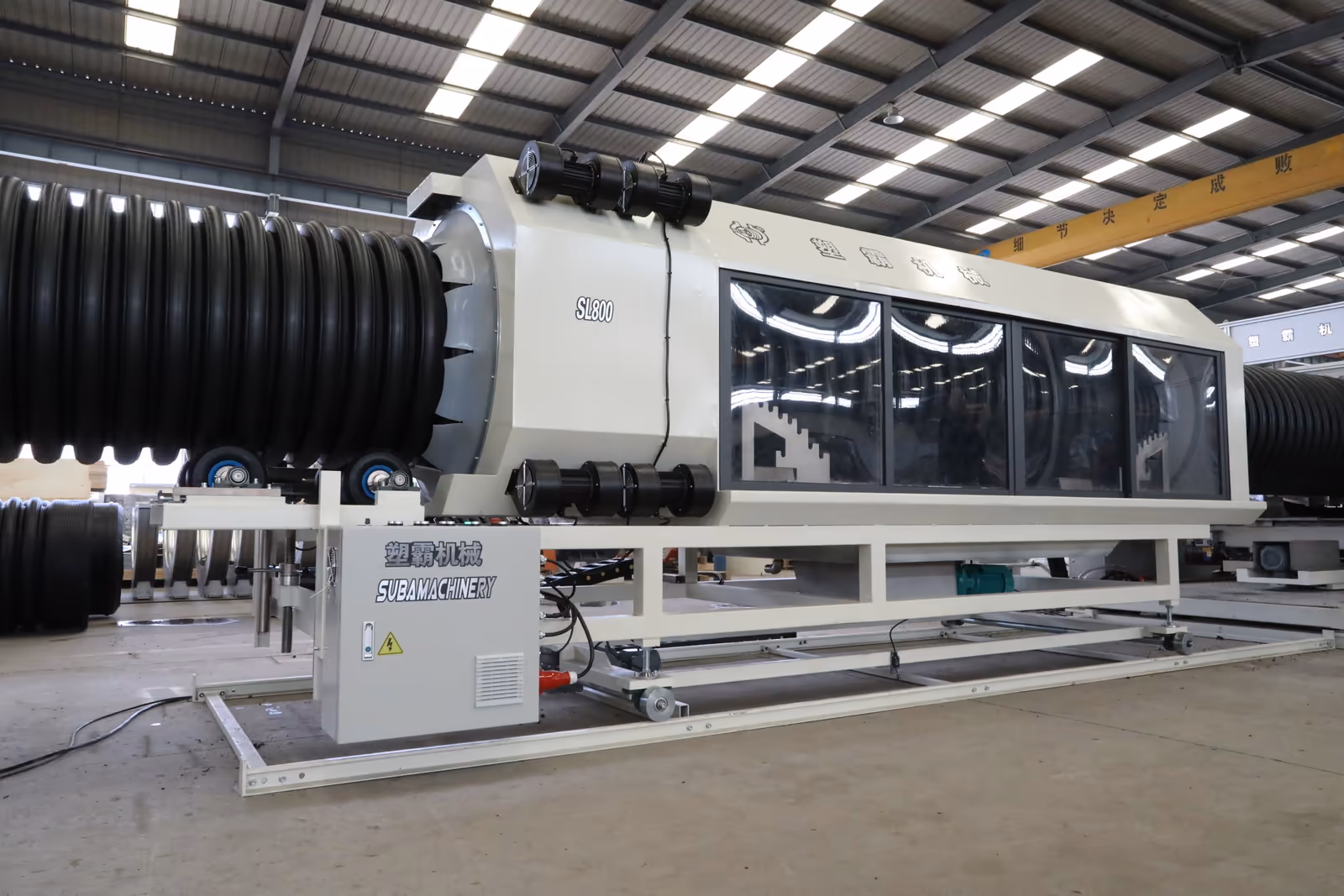

The SL800 double wall corrugated pipe extrusion line produces ID200mm-ID800mm HDPE/PP double wall corrugated pipes for drainage and sewage. The products adopt horizontal structure, water cooling pipe corrugator technology and extrusion technology to achieve high-speed production. Suba SL800 DWC corrugated pipe machine produces a bigger range of corrugated pipes by optimized structure. Invention patents ensure better operation and adjustment system.
| Pipe Diameter Range | ID200–OD1000 |
| Installed Power | 520 kW |
| Production Power | 222–283 kW |
| Moulds Number | 36/38 pairs |
| Chain Length | 6333/6685 mm |
| Max Output | 1300 kg/h |
| Dimensions (L×W×H) | 32×6.8×4.5 m |
| Materials | HDPE / PP / PVC |
Our specialists will contact you within 24 hours
Real output from a SL800 production line


Large Diameter Corrugated Pipes

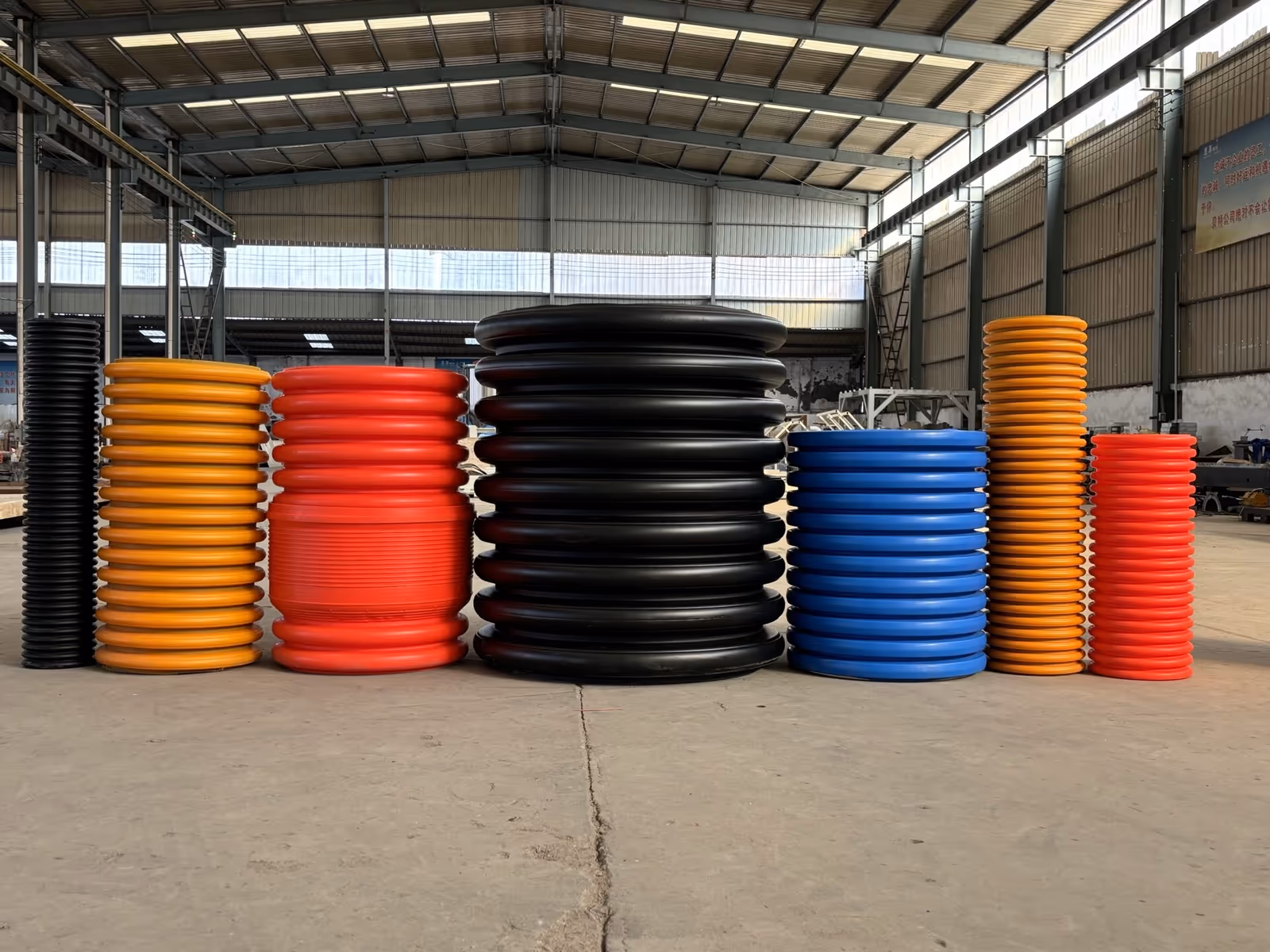

Large Diameter Pipes (up to OD1000)


Contact us for a free consultation and quote

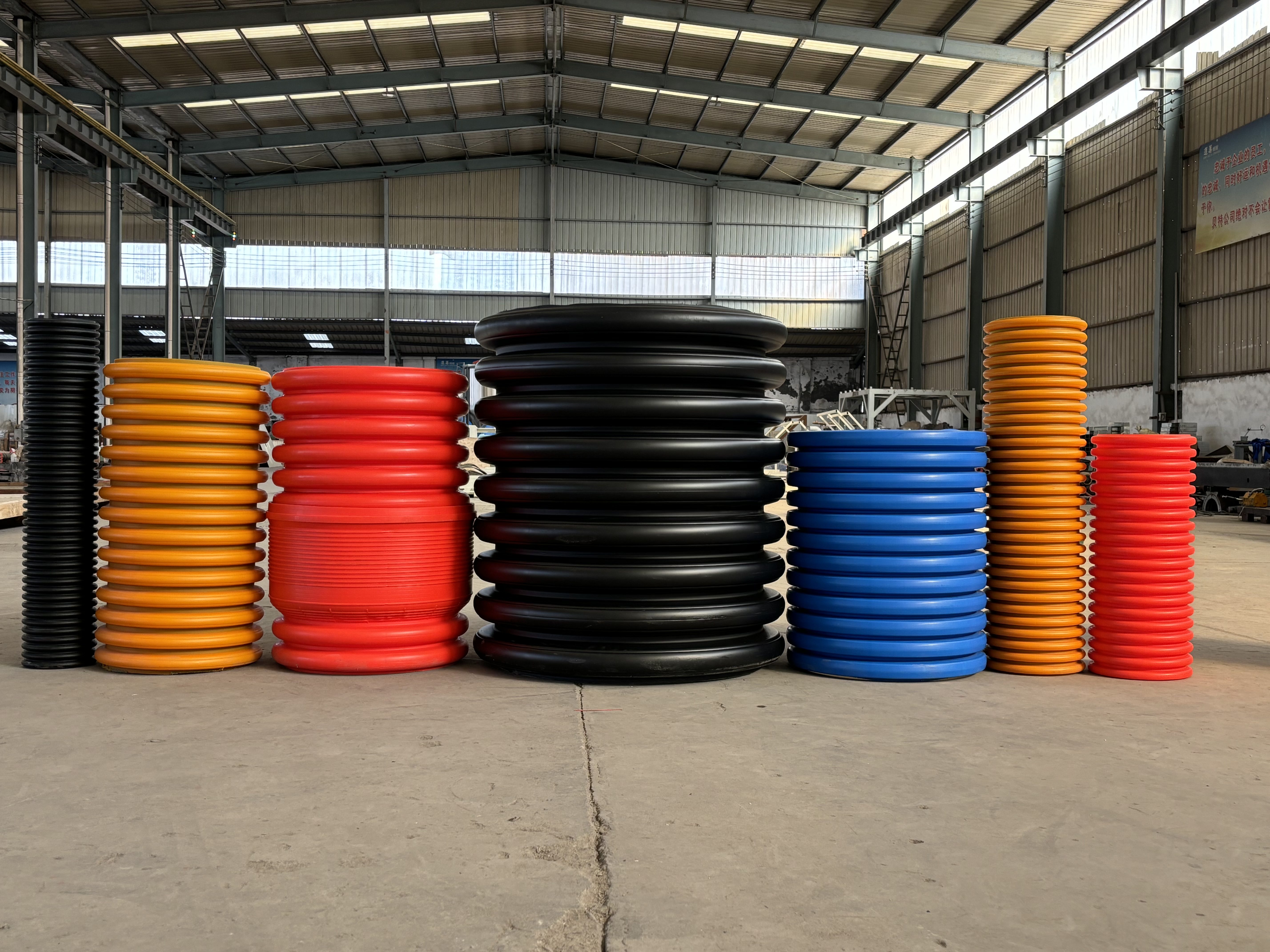

SL800 Pipe Samples
Watch the production line in operation. Full-speed corrugated pipe extrusion from raw material to finished product.
Production lines running at customer facilities around the world. Real installations, real output.
How raw materials become finished pipes
Material Preparation
Extrusion
Die Head Forming
Corrugation
Cooling & Shaping
Cutting & Stacking
Contact us for detailed specifications, pricing, and configuration options for the SL800 Corrugated Pipe Extrusion Line.
Moulds on this line are interchangeable with these production lines — no corrugator platform adjustment required.
